COMMUNITY (OPEN SOURCE)

1BLANKSPACE WEBAPP & NAMESPACE

The 1blankspace webapp is an open source all-of-enterprise html5/js based namespace - it can be used freely under the 1blankspace MIT licence.

It uses the mydigitalstructure hosted enterprise webapi and uses the on-platform hosting option - read more about build options.

It is written in Javascript - it deliberately only uses the jQuery/jQueryUI to keep it as simple and pure as can - you could of course enhance it using any of the generally available js frameworks.

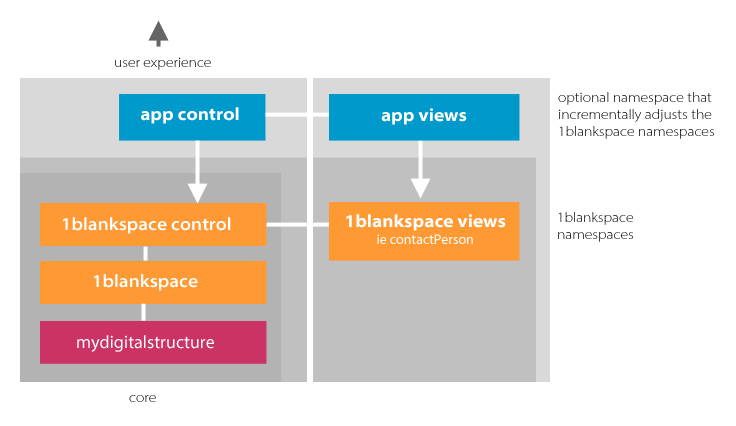

It uses the method invocation methodology - enabling simple incremental adaption for specific enterprise use cases (apps), while leveraging the existing common 1blankspace namespace and view namespaces.

You can view the namespace in action at app.1blankspace.com and get the code from the ibCom github repository.

You can also query the namespace object by going to app.1blankspace.com, opening a javascript console and typing in ns1blankspace [enter].

If you have any questions, issues or ideas then please share them at community.mydigitalstructure.com.  Coding issues can be raised on the github repository or create a pull request.


NAMESPACES


1BLANKSPACE NAMESPACE CHEATSHEET

Namespace references /jscripts/1blankspace-2.0.8.js (loads all the other view namespaces)

/jscripts/1blankspace.control.2.0.7.js

Namespace object ns1blankspace

Namespace dependencies /jscripts/jquery-1.8.3.min.js
/jscripts/underscore-min.js
/jscripts/jqueryui/jqueryui-1.8.12.min.js
/jscripts/jqueryui/jquery-ui-1.8.11.custom.min.js
/jscripts/jqueryui/jqueryui-timepicker.js
/jscripts/jquery.cookie.js
/jscripts/modernizr-load.js
/jscripts/md5-min.js
/jscripts/cryptojs-3.1.2/pbkdf2.js
/jscripts/cryptojs-3.1.2/aes.js
/jscripts/tiny_mce-3.5.8/tiny_mce.js
/jscripts/fullcalendar.min.js
/jscripts/date-2.0.0.js
/jscripts/moment.min.js
/jscripts/accounting.min.js
/jscripts/toword.js
/jscripts/chart.min.js
/jscripts/chart.HorizontalBar.js
Namespace definition To see a description of the namespace; go to app.1blankspace.com, open the javascript console (eg if Chrome: Tools > Developers Tools > Console) and run ns1blankspace.util.about.show().

Available parameters include namespace:, level: and type: ['namespace', 'method']

eg

To see all core namespaces:

ns1blankspace.util.about.show({level: 1, type: 'namespace'})

Specific namespace:

ns1blankspace.util.about.show({namespace: 'contactPerson'})

HTML5 containers The namespace will create the 6 foundation div containers if not present.

1blankspace_namespace_elements

 and ns1blankspaceMultiUseContainer.

css /jscripts/1blankspace-2.0.0.css

css icons image sprite

View object ns1blankspace.views

Manipulate this object to control the user interface view control options (ie menu).

Script object ns1blankspace.scripts

Manipulate this object to control which sub-namespace scripts are loaded by the 1blankspace namespace script loader.  This can include the standard 1blankspace namespaces or your own app namespaces.

Documentation 1blankspace namespace reference

Live css classes input.ns1blankspaceText
input.ns1blankspaceTextMulti
input.ns1blankspaceSelect
input.ns1blankspaceDate

HTMl5 attributes In context of the input.ns1blankspaceSelect class:

data-method
data-columns
data-id
data-parent
data-parent-search-id
data-parent-search-text

Useful 1blankspace namespace methods ns1blankspace.show({selector: , refresh: true});
ns1blankspace.util.fs();
ns1blankspace.util.endpointURI();
ns1blankspace.status.message();
ns1blankspace.status.error();
ns1blankspace.container.position({ xhtmlElementID: '', leftOffset: 0, topOffset: 0});

Useful 1blankspace namespace attributes ns1blankspace.xhtml.container
ns1blankspace.xhtml.loading
ns1blankspace.xhtml.logonNotes
ns1blankspace.xhtml.homeNotes

Routing You can direct route to a view or a view in context using the following URI pattern.

The request survives an authentication request and case matters.

Use ~/ to delay the routing until after control.init executed - you then need to invoke ns1blankspace.app.show({initialised: true})

/#[-alternate base namespace]/[~]/[namespace]/[id or parameters]/[method]

eg

/#/contactBusiness
/#/contactBusiness/1234/summary
/#/contactPerson/1234/groups
#/~/nsMyApp-admin.user/contactBusiness:1330495,role:Grower

Background Images You can find some interesting background images at the 1blankspace iStockPhoto lightbox.

Extending the namespace

If you want to add, modify or replace namespace code then create your own "control.js" and attach to your webapps site and add it to the Scripts section on that site.

If you want to replace the header; make sure you also update the themes array.

See example

If you have code that you want called when all other core namespace initialisation complete; then in your "control.js" add the method ns1blankspace.control.doLast with your iterative code.

eg

ns1blankspace.control.doLast = function ()
{

ns1blankspace.product.home = function () {....}

....

}

Useful resources Development tools
General documentation Extending standard namespace structures
Util namespace references Local namespace

Protect namespace
